Transverse (Diametral) Extensometers – Model 3575

Designed for general purpose transverse or diametral strain measurement on axially loaded specimens. This model may be used simultaneously with the Model 3542 axial extensometer.

Epsilon extensometers are COMPATIBLE WITH VIRTUALLY EVERY BRAND OF TEST EQUIPMENT and can be supplied with the correct connector to plug in directly, or supplied with a separate conditioner and amplifier.

WITH EPSILON’S 20+ YEAR HISTORY OF SERVICE to the materials testing community, you know we will be there to stand behind our products when your critical application requires it.

36 EXTENSOMETER MODELS are available in many thousands of variations. Our focus on helping customers has led to the development of models to cover nearly any test method.

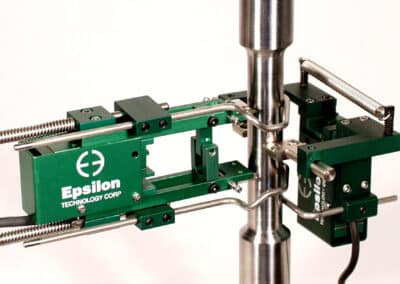

Self-supporting on the test sample, these extensometers will work on any width or diameter specimen from 0 to 1 inch (25 mm). They are commonly used for measurement of Poisson’s ratio, for transverse measurements with anisotropic materials like many composites and for sheet metal testing such as r-value determination. Most often they are used simultaneously with Epsilon’s axial extensometers.

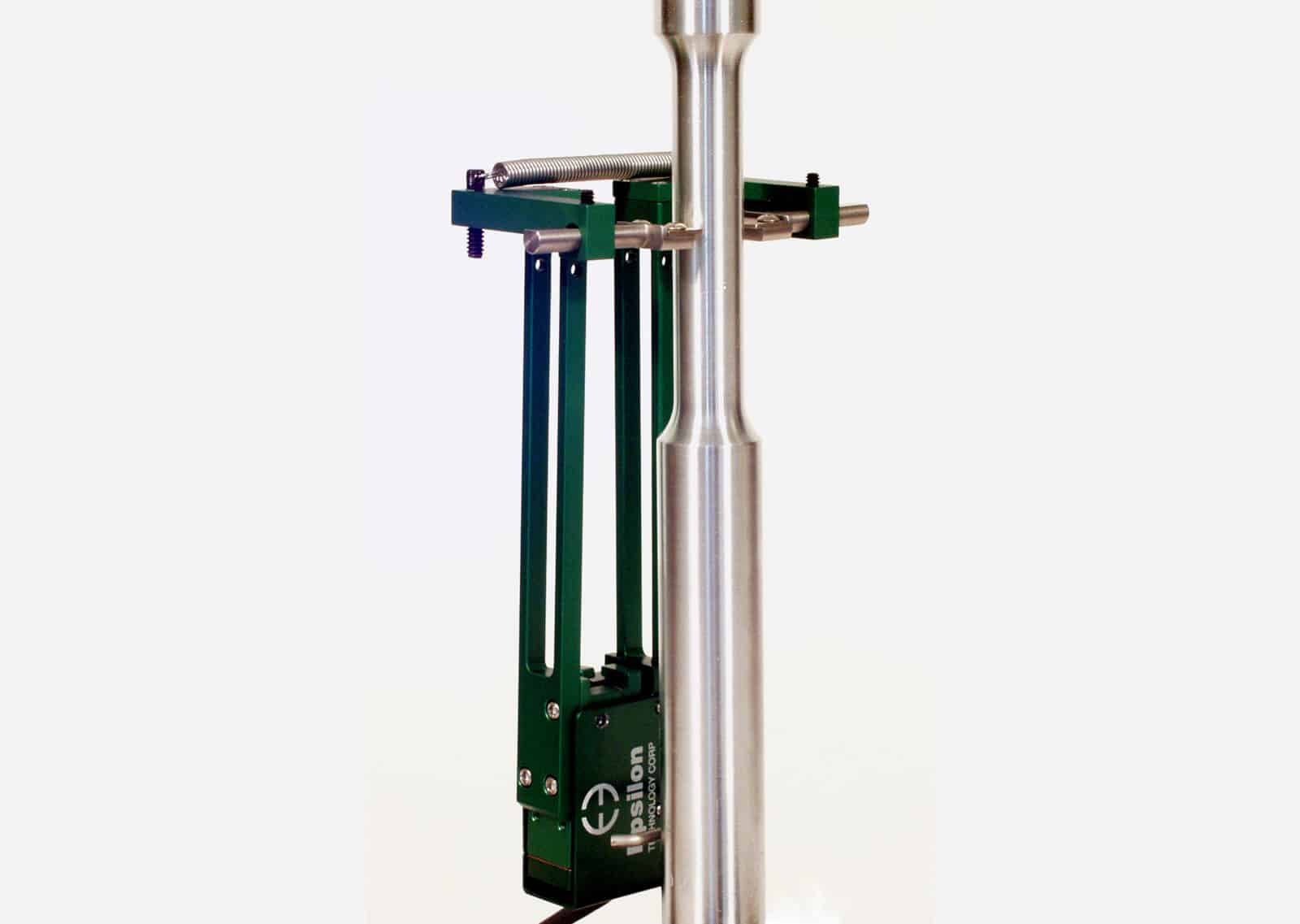

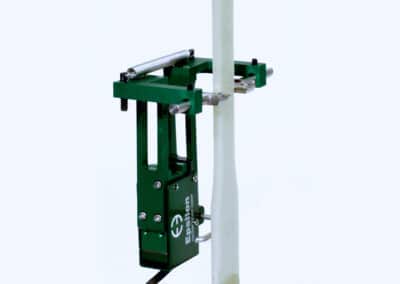

These units easily clip onto the sample and are held in place with an integral spring. Rounded contact edges maintain the position on the specimen. All are high accuracy strain gaged units, compatible with most test controllers.

The Model 3575 extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Download Data Sheet

  • May be left on through specimen failure.
  • Full bridge, 350 ohm strain gaged design for compatibility with nearly any test system.
  • All models will measure both positive and negative displacements.
  • All standard units have linearity readings of 0.20% or better.
  • Suitable for measuring Poisson’s ratio per ASTM E132 with most materials and specimens.
  • Includes high quality foam lined case and spare set of tool steel knife edges.
  • Rugged, dual flexure design for strength and improved performance. Much stronger than single flexure designs, this also allows cyclic testing at higher frequencies.
  • Easy to mount, with integral springs to keep the extensometer on the sample.
  • Self-supporting on the specimen.

Download Data Sheet

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.20% of full scale measuring range, depending on model

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Specimen Size: Works with samples up to 25 mm (1 inch) width or diameter

ce-certified

Download Data Sheet

Download Data Sheet

Product Videos

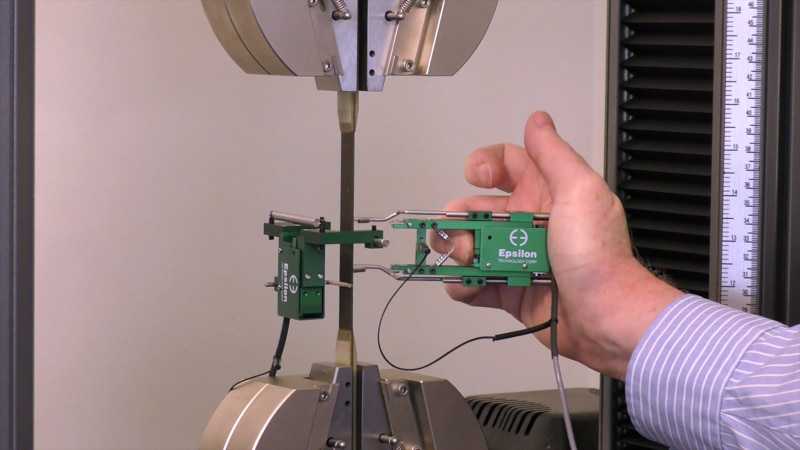

Transverse extensometer installation on a composite specimen to measure Poisson’s ratio (Model 3575)



Ordering Information

Click table options to configure

Measuring Range i

mm or inches #
±0.5 mm -050M 050M
±1.0 mm -100M 100M
±2.5 mm -250M 250M
±3.0 mm -300M 300M
±5.0 mm -500M¹ 500M
±0.020 in -020T 020T
±0.050 in -050T 050T
±0.100 in -100T 100T
±0.150 in -150T 150T
±0.200 in -200T¹ 200T

Temperature Range

degrees #
-265 ˚C to 100 ˚C (-450 ˚F to 210 ˚F) -LT LT
-40 ˚C to 100 ˚C (-40 ˚F to 210 ˚F) -ST ST
-40 ˚C to 150 ˚C (-40 ˚F to 300 ˚F) -HT1 HT1
-40 ˚C to 200 ˚C (-40 ˚F to 400 ˚F) -HT2 HT2
-265 ˚C to 200 ˚C (-450 ˚F to 400 ˚F) -LHT LHT

Model Number:  3575_ _ _ __ _

Model Number:

3575_ _ _ __ _

Model 3575 Available Versions: ANY combination of measuring range and temperature range listed above is available. Other configurations may be available with special order; please contact Epsilon to discuss your requirements.

¹Special order

Example: 3575-050T-ST: ±0.050 inches measuring range, standard temperature option (-40 °F to 210 °F)

Download Product Guide
