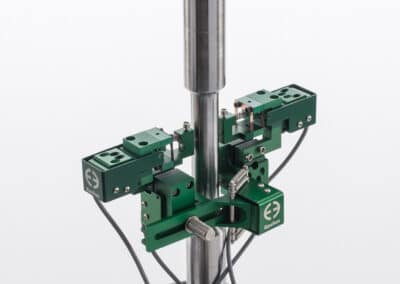

Axial/Torsional Extensometers – Model 3550

Designed for simultaneously measuring axial and torsional deflections on specimens tested in axial/torsional machines.

36 EXTENSOMETER MODELS are available in many thousands of variations. Our focus on helping customers has led to the development of models to cover nearly any test method.

Operation of these, and all of Epsilon’s extensometers, are

VERIFIED TO APPLICABLE STANDARDS SUCH AS ASTM E83 OR ISO 9513

using in-house calibration systems that are calibrated with Epsilon’s laser interferometer system.

WITH EPSILON’S 20+ YEAR HISTORY OF SERVICE

to the materials testing community, you know we will be there to stand behind our products when your critical application requires it.

The Model 3550 extensometer is most often used on round specimens tested in bi-axial test machines capable of simultaneous axial and torsional loading. The extensometer is often customized for particular applications. All units are capable of bi-directional displacement, so they may be used for cyclic testing under fully reversed loading conditions. The standard sized model is self-supporting on the specimen, and works on specimens from 9.5 to 25.4 mm (0.375 to 1.000 inches) diameter. The conical point contacts included with the extensometer are made from tungsten carbide. Their unique design directly measures the surface shear strain angle, which allows operation on a wide range of specimen diameters without changing calibration.

All models are designed specifically to minimize crosstalk between axes and to provide high accuracy measurements. All feature the dual flexure design common to other Epsilon extensometers.

Available options cover temperature ranges from -270 °C to 200 °C (the standard temperature range is -40 °C to 100 °C). Both inch and metric versions are available. A wide range of gauge length and measuring ranges are available. Because these transducers are often used for specialized tests, contact Epsilon with your specific test needs.

The Model 3550 extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Download Data Sheet



  • Full bridge, 350 ohm strain gaged design for compatibility with nearly any test system.
  • Standard units meet ASTM class B-1 requirements for accuracy. A test certificate is included. ISO 9513 class 0,5 test certificates are available upon request. All standard units have linearity readings of 0.20% or better in torsion.
  • Self-supporting on the specimen.
  • Cyclic testing may be performed at up to 2 Hz.
  • Includes the Epsilon Shunt Calibration System for on-site electrical calibration.
  • Rugged, dual flexure design for strength and improved performance – much stronger than single flexure designs.
  • Includes high quality foam lined case.

Download Data Sheet



Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.15% of full scale measuring range, depending on model

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Operating Force: <30 g typical

Crosstalk: Less than 0.5%

ce-certified



Download Data Sheet

Download Data Sheet

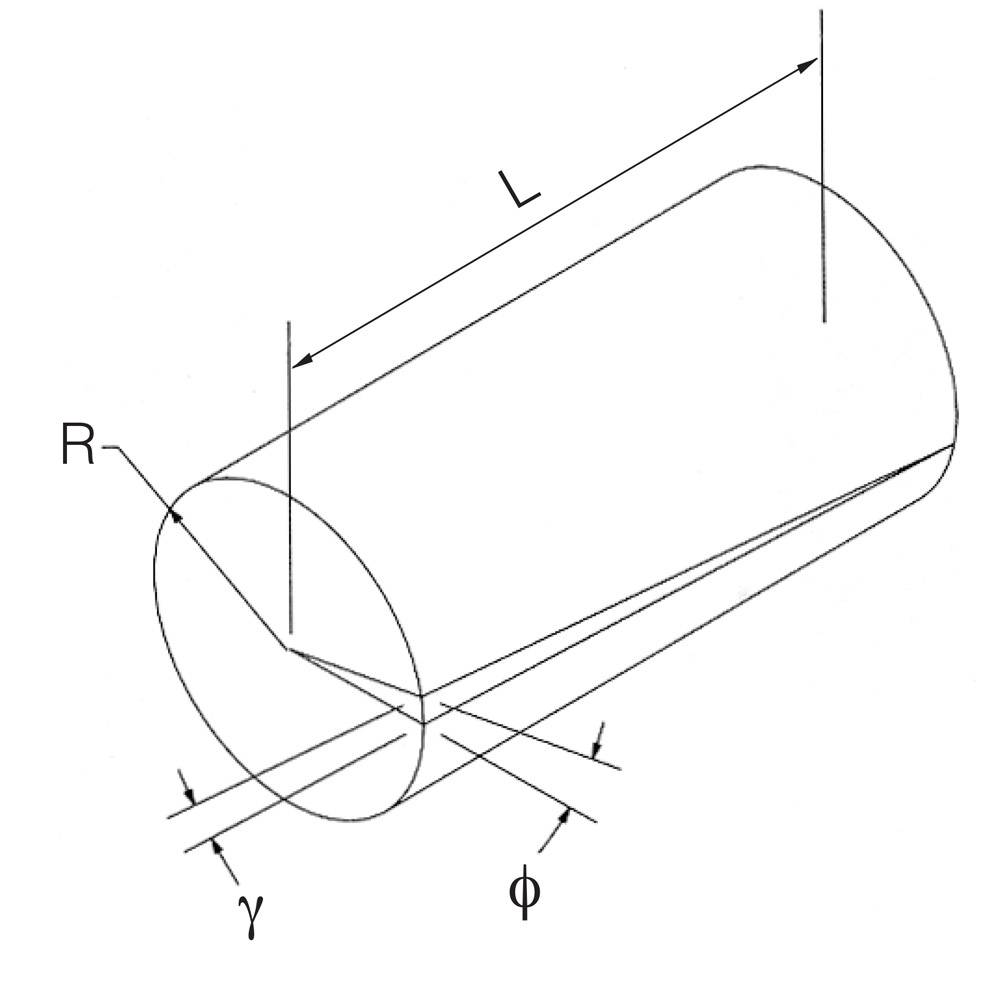

Epsilon’s axial/torsional extensometer was designed to directly measure the shear strain, γ, shown in the figure. This design allows the correct determination of the shear strain without having to know the radius of the specimen being tested, R1. The shear strain is related to the angle of twist (a commonly referenced parameter in torsion testing), φ, by the following relationship:

equation_for_calculation_of_shear_strain_in-_a_rod_due_to_torsion-Epsilon_Technology



For extensometers that measure φ directly instead of γ, corrections need to be made for every different specimen diameter tested and for axial strain to correctly determine the shear strain. The following two examples show the variation of the angle of twist versus a change in specimen diameter relative to the constant resulting shear strain:

Product Videos



Setup instructions for Model 3550 axial-torsional extensometers.



Ordering Information

Model Number: 35500100010002ST

Model Number:

35500100010002ST

Axial Gauge Length: 1 inch; Axial Strain: ±10%; Torsional Shear Strain Angle: ±2°

Model Number: 3550025M005002ST

Model Number:

3550025M005002ST

Axial Gauge Length: 25 mm; Axial Strain: ±5%; Torsional Shear Strain Angle: ±2°

Model Number: 3550025M005003ST

Model Number:

3550025M005003ST

Axial Gauge Length: 25 mm; Axial Strain: ±5%; Torsional Shear Strain Angle: ±3°

Model Number: 3550025M010002ST

Model Number:

3550025M010002ST

Axial Gauge Length: 25 mm; Axial Strain: ±10%; Torsional Shear Strain Angle: ±2°

-ST temperature range is -40 °C to 100 °C (-40 °F to 210 °F), but -HT1, -HT2, -LT, and -LHT options are also available. This unit is built to order, contact Epsilon for a unit specific to your testing requirements.
