Extensometers for materials testing

Averaging Axial Extensometers for Large Compression Samples – Model 3542RA

Designed primarily for compressive strength tests on rock, concrete and other large compression samples, this model measures axial strain on opposite sides of the test specimen, and the output is an average of the two readings. Gauge lengths from 25 to 200 mm (1 to 8 inches) and measuring ranges from 1.2 to 6 mm (0.050 to 0.250 inches) are available.

36 EXTENSOMETER MODELS are available in many thousands of variations. Our focus on helping customers has led to the development of models to cover nearly any test method.

Operation of these, and all of Epsilon’s extensometers, are

VERIFIED TO APPLICABLE STANDARDS SUCH AS ASTM E83 OR ISO 9513

using in-house calibration systems that are calibrated with Epsilon’s laser interferometer system.

WITH EPSILON’S 20+ YEAR HISTORY OF SERVICE

to the materials testing community, you know we will be there to stand behind our products when your critical application requires it.

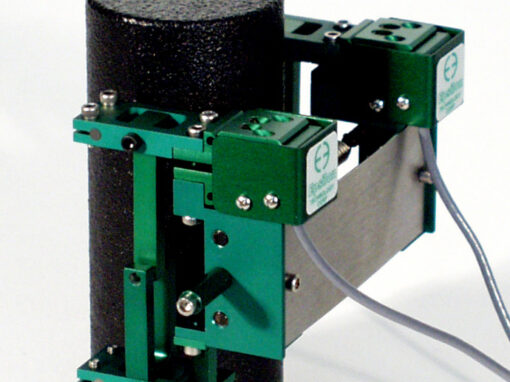

The Model 3542RA is available in a variety of configurations. All are self-supporting on the specimen and mount very easily. For tests where a single diameter specimen is typically used, the fixed diameter Model 3542RA1 is recommended. For applications where a continuously adjustable diameter extensometer is required, the Model 3542RA2 is available. The standard configuration for this model allows it to work on samples from 50 mm to 150 mm (2 inches to 6 inches). If desired, the two readings can be independent, providing two outputs. Many rock tests are done in tri-axial pressure vessels. Epsilon has versions for use in oil to 1360 bar at 200 °C (20,000 psi at 400 °F). These will fit in unusually small inside diameter vessels. For small diameter specimens, we suggest the Model 3442RA1 averaging axial extensometer.

All Model 3542RA extensometers are designed so they may be used together with the Model 3544 circumferential or Model 3975 diametral extensometer. Epsilon’s rock extensometers can withstand the punishment of daily, high volume testing. Some units have been used for several thousand tests without damage.The conical point contacts included with the extensometer are made from tungsten carbide.

The Model 3542RA extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Download Data Sheet

  • Full bridge, 350 ohm strain gaged design for compatibility with nearly any test system.
  • High accuracy, averaging output or optional dual independent outputs.
  • Standard units meet ASTM class B-1 requirements for accuracy. A test certificate is included. ISO 9513 class 0,5 test certificates are available upon request.
  • Rugged, dual flexure design for strength and improved performance.
  • Includes high quality foam lined case.
  • Easy mounting, attaches with integral springs.
  • Self-supporting on the specimen.
  • May be used simultaneously with Model 3544 circumferential extensometers or Model 3975 diametral extensometer.
  • The 3542RA1 is configured for a single diameter size (customer specified), and the 3542RA2 works on sample diameters from 50 mm to 150 mm (2 inches to 6 inches). Special configurations of the 3542RA2 will allow for smaller diameter sizes.

Download Data Sheet

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.20% of full scale measuring range, depending on model

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable: Integral, ultra-flexible cable, 8 ft (2.5 m) standard

Specimen Size: Wide range of specimen sizes available, including AX, BX, NX and larger, to 200 mm (8 inches) diameters standard (larger sizes on special order)

Operating Force: <30 g typical per side

ce-certified



Download Data Sheet

  • Fixed or variable diameter configurations
  • Dual, independent outputs
  • Connectors to interface to nearly any brand test equipment
  • Shunt Calibration

Download Data Sheet

Ordering Information

Click table options to configure

Diameter Type¹

#
Fixed 1 1
Adjustable 2 2

Gauge Length i

mm or inches #
25.0 mm -025M 025M
50.0 mm -050M 050M
80.0 mm -080M 080M
100.0 mm -100M 100M
150.0 mm -150M 150M
200.0 mm -200M 200M
1.000 in -0100 0100
2.000 in -0200 0200
3.000 in -0300 0300
4.000 in -0400 0400
5.000 in -0500 0500
6.000 in -0600 0600
8.000 in -0800 0800

Measuring Range i

extension #
±1.2 mm -120M 120M
±2.5 mm -250M 250M
±6.0 mm -600M 600M
±0.050 in -050T 050T
±0.100 in -100T 100T
±0.250 in -250T 250T

Temperature Range

degrees #
-270 °C to 100 °C (-454 °F to 210 °F) -LT LT
-40 °C to 100 °C (-40 °F to 210 °F) -ST ST
-40 °C to 150 °C (-40 °F to 300 °F) -HT1 HT1
-40 °C to 200 °C (-40 °F to 400 °F) -HT2 HT2
-270 °C to 200 °C (-454 °F to 400 °F) -LHT LHT

Model Number: 3542RA __ _ _ __ _ __ _

Model Number:

3542RA __ _ _ __ _ __ _

Model 3560 Available Versions: ANY combination of gauge length, measuring range and temperature range listed above is available, except as noted. Test specimen diameter(s) must be specified at the time of order. Other configurations may be available with special order; please contact Epsilon to discuss your requirements.

¹Additional diameter configurations are available with special order.

Example: 3542RA1-100M-600M-ST: Fixed size, 100 mm gauge length, 6.0 mm measuring range, standard temperature option (-40 °C to 100 °C)
