Deflection Gages (Deflectometers) – Model 3540

Widely used for measuring deformations in three- and four-point bend tests, compression tests and a variety of general-purpose deflection measurements. These strain gaged devices come with a magnetic base for easy mounting.

High-Res Deflectometer 4mm Travel Model 3540

38 EXTENSOMETER MODELS are available in many thousands of variations. Our focus on helping customers has led to the development of models to cover nearly any test method.

Operation of these extensometers are

VERIFIED TO EITHER ASTM E2309 OR ISO 9513 STANDARDS

using in-house calibration systems that are calibrated with Epsilon’s laser interferometer system.

WITH OVER 30 YEARS OF SERVICE
to the materials testing community, you know we will be there to stand behind our products when your critical application requires it.

Deflection is measured with a single arm with an attached spherical contact tip, similar to those on a dial indicator. The full bridge strain gaged construction provides an electrical output compatible with any electronics designed for a strain gaged transducer.

The magnetic mounting base supplied with the deflectometer can be mounted to the desired reference surface, whether flat or round, and the tip can be easily positioned to measure deformations during the test. The mounting system is designed to enable convenient swing in / swing out positioning of the deflectometer, when needed, without having to realign the deflectometer between tests.

All models feature a spring-loaded arm that can break free in the event of excessive displacement, protecting the deflection gage from damage. The upper arm exerts a small spring force against the specimen, which is sufficient to allow dynamic cyclic testing if desired, yet light enough in force to avoid influence on the test.

These units come standard with the arm set to measure downward deflections when oriented in the upright position. They can be used upside down or in any orientation. The measuring ranges listed are total displacement.

Model 3540 deflectometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller with electronics for a strain channel, and Epsilon will equip the deflectometer with a compatible connector that is wired to plug directly into the controller. For systems lacking the required electronics, Epsilon can provide a variety of signal conditioning solutions that enable connecting to data acquisition systems or other equipment.

Download Data Sheet

Full bridge, 350 ohm strain gaged design for compatibility with nearly any test system.
General purpose deflection sensor covers many test requirements; may be used in any orientation.
Comes with an adjustable magnetic base for easy mounting and convenient swing in / swing out positioning.
Spring loaded arm detaches to prevent damage from overtravel.
Meets ASTM and ISO accuracy classes as follows.
- -001M, -004M, -006M, -005T, -015T, -025T:
  ASTM E2309 Class A
  ISO 9513 Class 1
  ASTM E83 Class B-2 (assuming 50 mm gauge length per D790 and D6272)
- -012M, -025M, -050M, -050T, -100T, -200T:
  ASTM E2309 Class B
  ISO 9513 Class 2
  ASTM E83 Class C (assuming 50 mm gauge length per D790 and D6272)
All standard units have linearity of 0.25% of FS or better.
Includes the Epsilon Shunt Calibration System for on-site electrical calibration.
Rugged, dual flexure design for improved performance.
Includes high quality foam lined case.

Download Data Sheet

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.25% of full scale measuring range

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Operating Force: <1.5 N (0.3 lbf) typical

Download Data Sheet

Connectors to interface to nearly any brand of test equipment
Model PH2040 magnetic mounting base – provides 6+ degrees of freedom adjusted with one knob; ideal when measuring deflections of assemblies and structures

Download Data Sheet

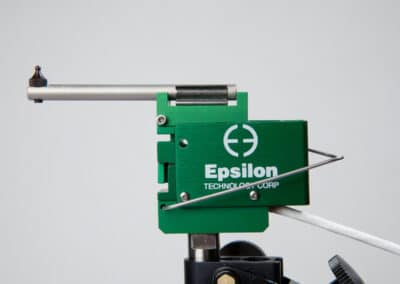

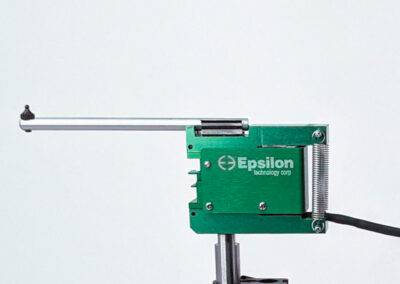

4mm travel

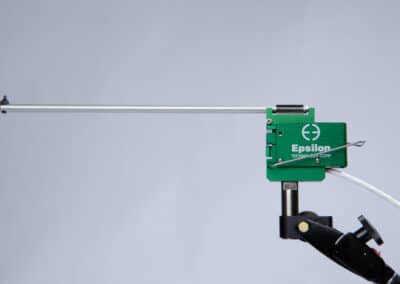

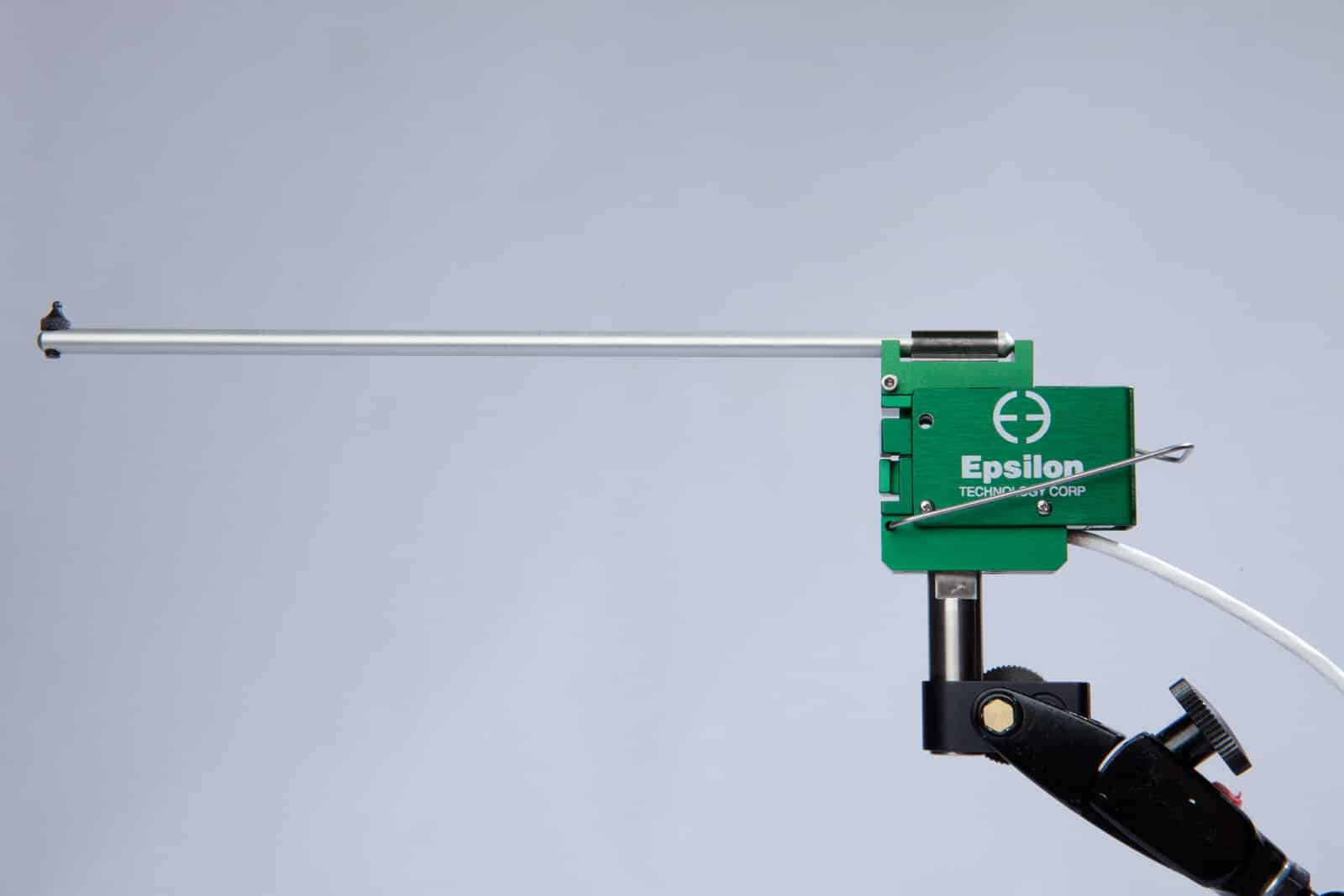

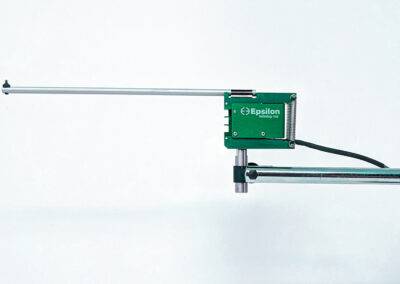

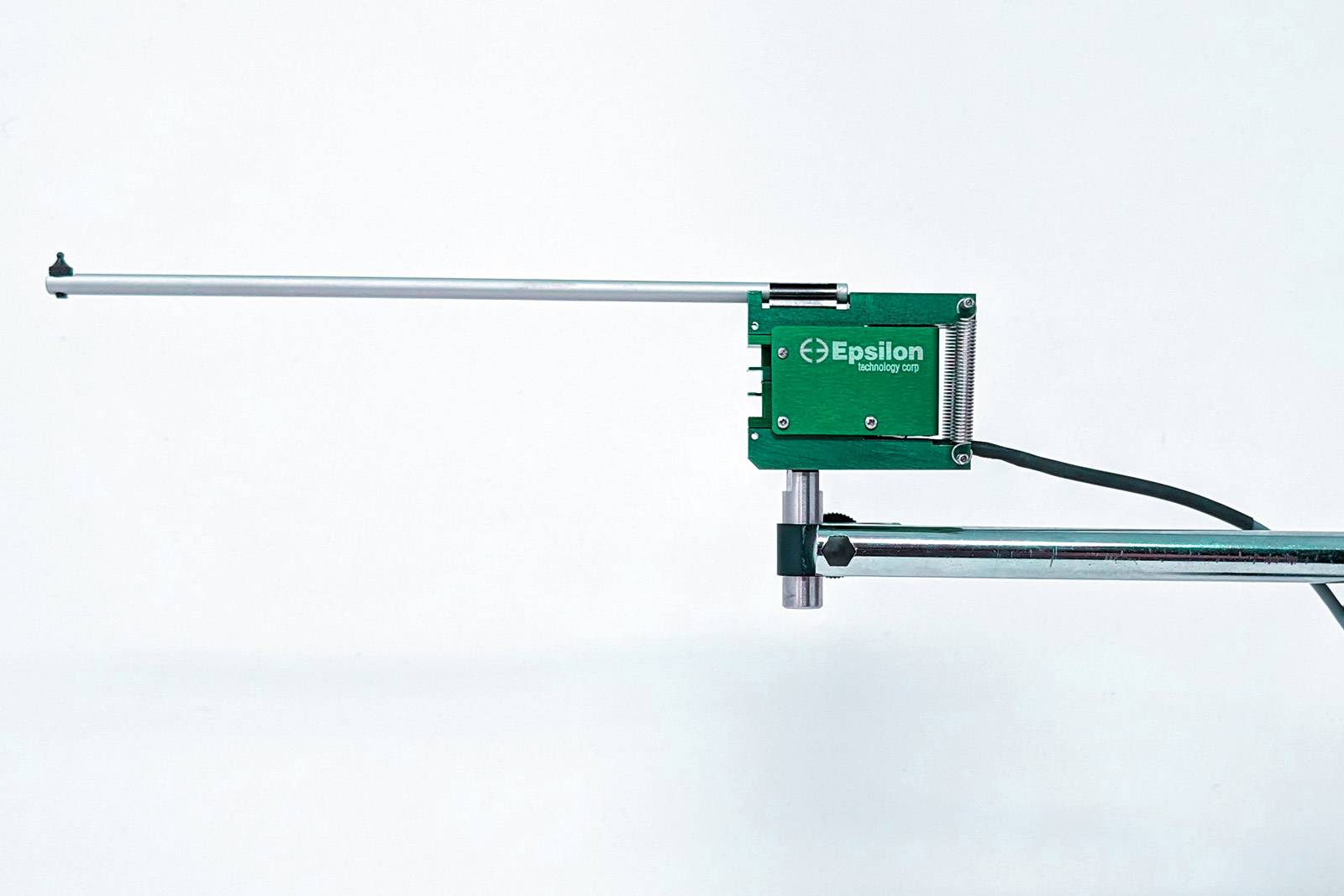

25mm travel

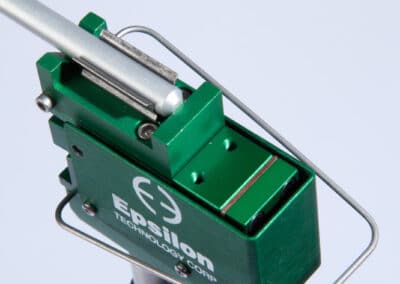

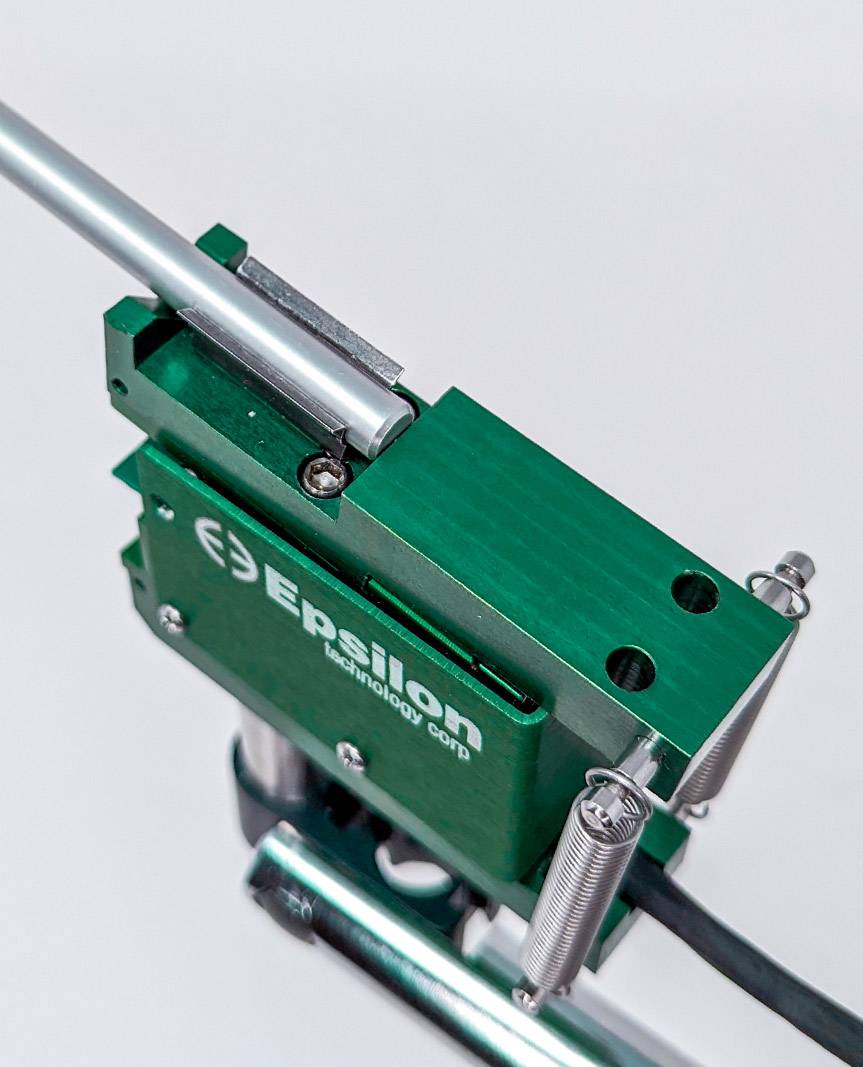

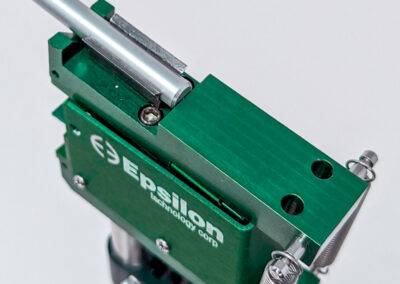

Model 3540 release mechanism

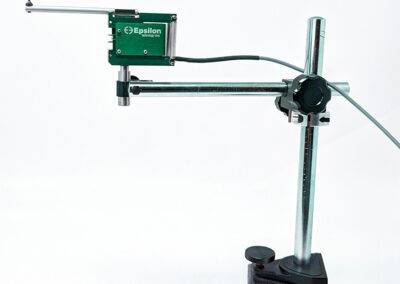

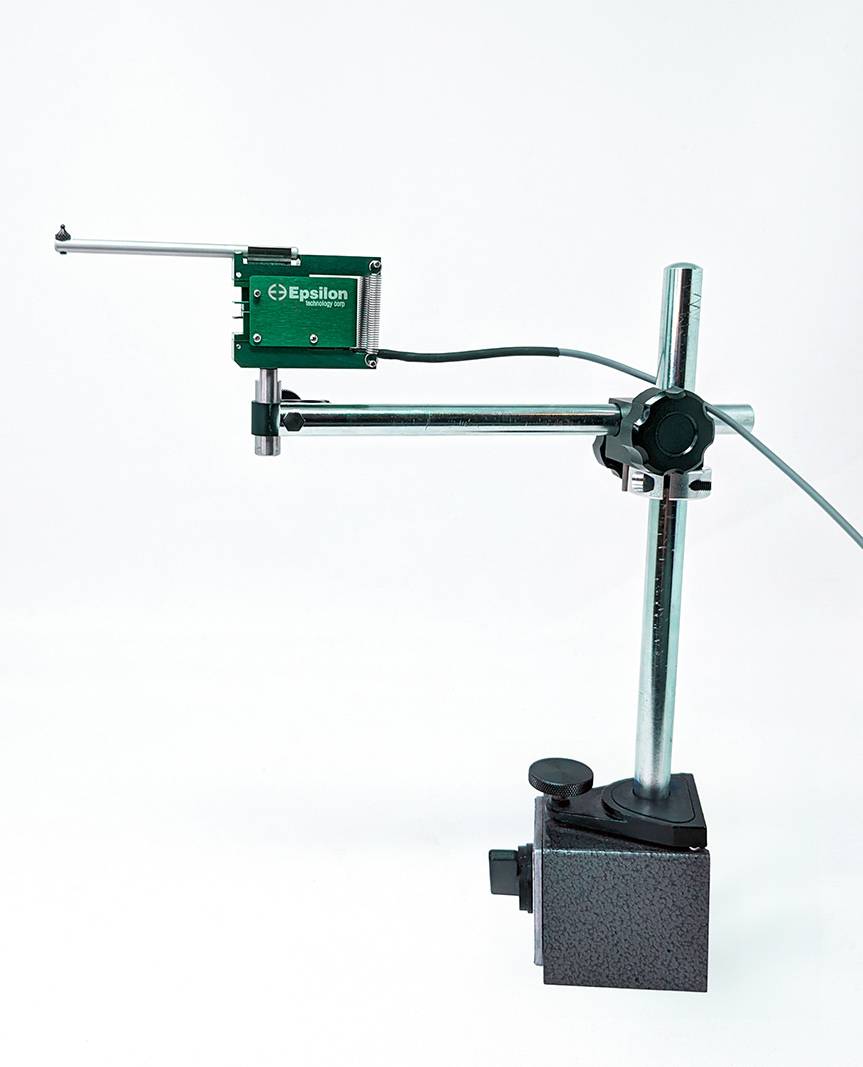

Included magnetic mounting base

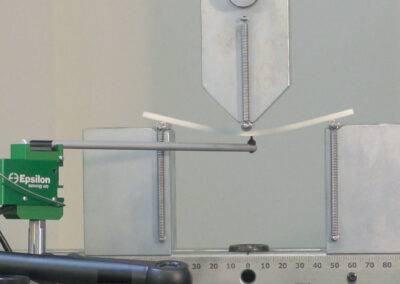

3-point and 4-point bending

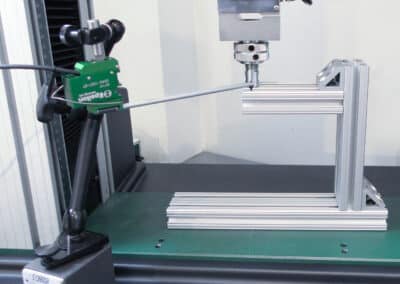

Inverted measurement (optional 3540-MAG mounting shown)

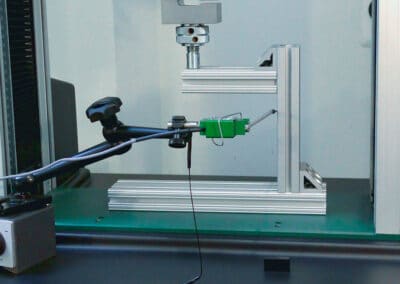

Off-axis measurement (optional 3540-MAG mounting shown)

Product Videos

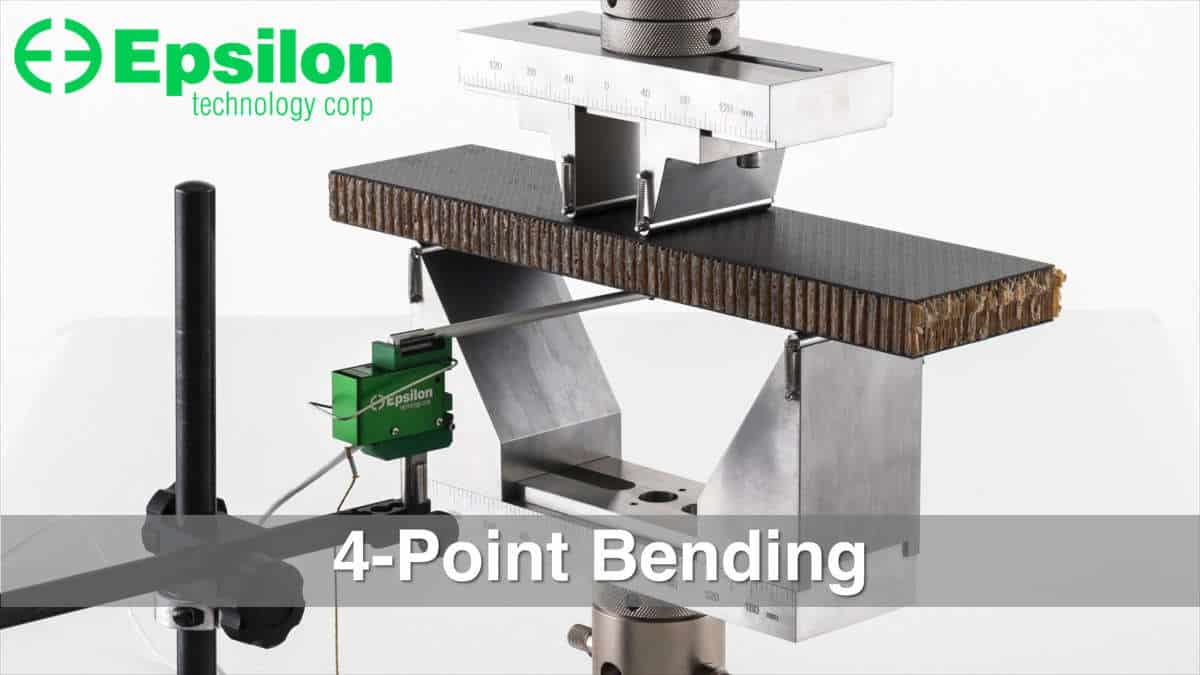

Deflectometer example applications: four-point bending, three-point bending, and component deflection in various orientations

Ordering Information

Click table options to configure

Measuring Range i

mm or inches	#
1.0 mm	-001M	001M
4.0 mm	-004M	004M
6.0 mm	-006M	006M
12.0 mm	-012M	012M
25.0 mm	-025M	025M
50.0 mm	-050M	050M
0.050 in	-005T	005T
0.150 in	-015T	015T
0.250 in	-025T	025T
0.500 in	-050T	050T
1.000 in	-100T	100T
2.000 in	-200T	200T

Temperature Range

degrees	#
-270 ˚C to 100 ˚C (-454 ˚F to 210 ˚F)	-LT	LT
-40 ˚C to 100 ˚C (-40 ˚F to 210 ˚F)	-ST	ST
-40 ˚C to 150 ˚C (-40 ˚F to 300 ˚F)¹	-HT1	HT1
-40 ˚C to 200 ˚C (-40 ˚F to 400 ˚F)¹	-HT2	HT2
-270 ˚C to 200 ˚C (-454 ˚F to 400 ˚F)¹	-LHT	LHT

Model Number: 3540 – _ _ _ _ – _ _

Model Number:

3540 – _ _ _ _ – _ _

Request a Quote Request Information

Request a Quote

Request Information

Model 3540 Available Versions: ANY combination of measuring range and temperature range listed above is available. Other configurations may be available with special order; please contact Epsilon to discuss your requirements.

¹Magnetic base not suitable for high temperature use; 50 °C (125 °F) max.

Example: 3540-012M-ST: 12.0 mm measuring range, standard temperature option (-40 °C to 100 °C)
