Clip-On Extensometer for Sandwich Core Shear Testing and Rigid Cellular Plastic Shear Testing

Sep 15, 2016

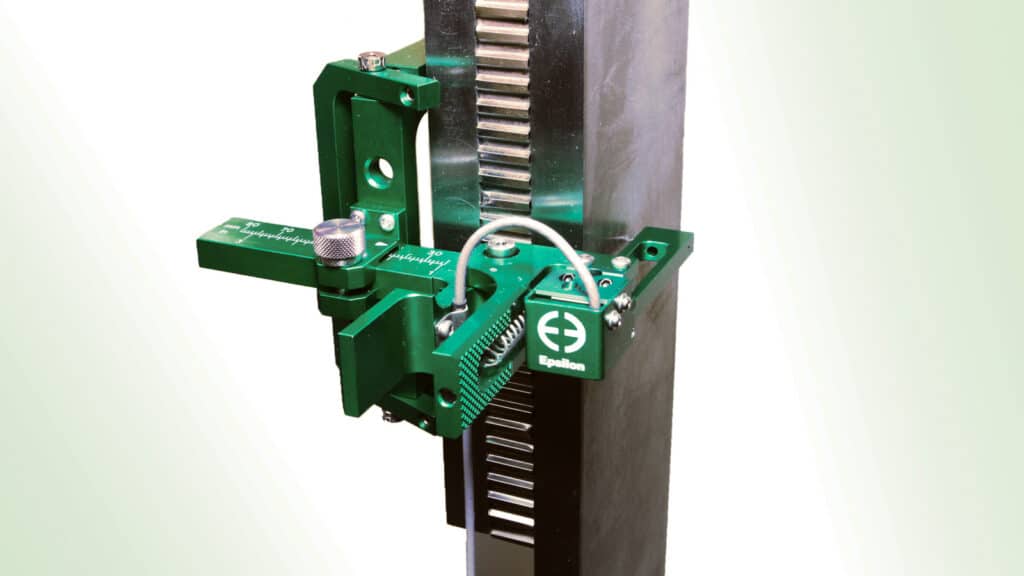

Clip-on Model 3421 extensometers measure shear strain of foam and honeycomb sandwich cores, as well as rigid cellular plastics. Suitable for measuring shear modulus, 2% offset shear strength, and stress-strain curves prior to specimen failure, they may also be used for sandwich core shear fatigue testing.

The Model 3421 is applicable for testing to the following standards:

  • ASTM C273 Shear Properties of Sandwich Core Materials
  • ASTM C394 Shear Fatigue of Sandwich Core Materials
  • ISO 1922 Rigid cellular plastics — Determination of shear strength
  • DIN 53294 Testing of sandwiches; shear test
  • EN 12090 Determination of Shear Behavior of Thermal Insulation Products (single specimen test only)

Model 3421 extensometers are adjustable to work with a range of specimen thicknesses and widths, and can be used with tension or compression test fixture loading.
