Sheet Metal r-Value Extensometers – Model 3575AVG

Designed for measuring r-values in sheet metal testing, this extensometer averages the lateral strain at two locations. This model may be used simultaneously with the Model 3542 axial extensometer.

Epsilon extensometers are COMPATIBLE WITH VIRTUALLY EVERY BRAND OF TEST EQUIPMENT and can be supplied with the correct connector to plug in directly, or supplied with a separate conditioner and amplifier.

WITH EPSILON’S 20+ YEAR HISTORY OF SERVICE to the materials testing community, you know we will be there to stand behind our products when your critical application requires it.

36 EXTENSOMETER MODELS are available in many thousands of variations. Our focus on helping customers has led to the development of models to cover nearly any test method.

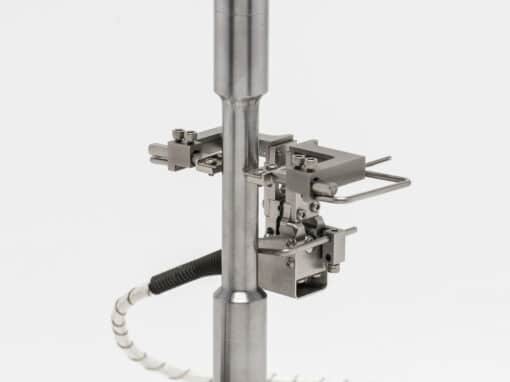

This extensometer is self-supporting on the sample. It has rounded contact edges which measure the sample at two locations. As the test sample is pulled, the contact edges follow the part of the sample they were mounted on, measuring lateral strain on the sample at the same location throughout the test. The extensometer has a single output, which is the average of the two lateral measurements.

These extensometers are used with a 50 mm or 2 inch gauge length Model 3542 extensometer, which measures the axial strain.

The Model 3575AVG extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Download Data Sheet

  • May be left on through specimen failure.
  • Full bridge, 350 ohm strain gaged design for compatibility with nearly any test system.
  • All standard units have linearity readings of 0.15% or better.
  • Includes high quality foam lined case and spare set of tool steel knife edges.
  • Rugged, dual flexure design for strength and improved performance. Much stronger than single flexure designs.
  • Self-supporting on the specimen.
  • Measuring range of 2 mm or 0.075 inches (specify when ordering).
  • Single clip-on unit directly measures lateral strain as an average of two locations.
  • Greatly speeds up testing and allows digital data collection compared to manual measurements.

Download Data Sheet

Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max.

Output: 2 to 4 mV/V, nominal, depending on model

Linearity: ≤0.15% of full scale measuring range

Temperature Range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Specimen Size: Works with samples 9.5 to 25 mm (0.375 to 1.0 inch) width

ce-certified



Download Data Sheet

Download Data Sheet

Ordering Information

Click table options to configure

Temperature Range

degrees #
-265 °C to 100 °C (-450 °F to 210 °F) -LT LT
-40 °C to 100 °C (-40 °F to 210 °F) -ST ST
-40 °C to 150 °C (-40 °F to 300 °F) -HT1 HT1
-40 °C to 200 °C (-40 °F to 400 °F) -HT2 HT2
-265 °C to 200 °C (-450 °F to 400 °F) -LHT LHT

Model Number:  3575AVG – _ _

Model Number:

3575AVG – _ _

Model 3575AVG Available Versions: Other configurations may be available with special order; please contact Epsilon to discuss your requirements.

Example: 3575AVG-LT: 2 mm measuring range, low temperature option (-265 °C to 100 °C)
